The NPS Pthread Pool implementation. More...

#include <stdio.h>
#include <stdlib.h>
#include <signal.h>
#include <errno.h>
#include <sched.h>
#include <time.h>
#include <string.h>
#include <pthread.h>
#include "thr_pool.h"

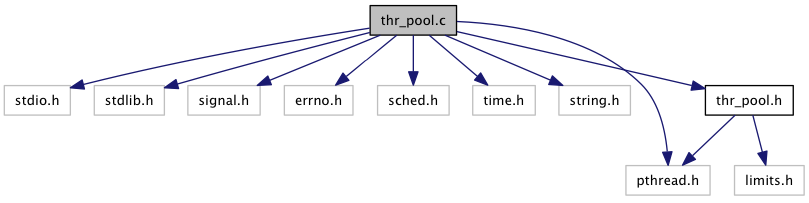

Include dependency graph for thr_pool.c:

Data Structures
struct	job
	Linked list of queued jobs. More...
struct	thr_pool
	State for a Thread Pool. More...
Defines
#define	DEBUG_THR_POOL 0
	debug level
#define	dbugf(a, s)
	Prints to stderr "TID: file:line <string>\n".
#define	dbugdf(a, s, d)
	Prints to stderr "TID: file:line <string> <integer>\n".
#define	dbugg(a, f,...)
	Prints to stderr "TID: file:line <format string>\n".
#define	THR_POOL_COPY_MODE 0x01
	flag: job input is copied
#define	THR_POOL_DESTROY_REQUEST 0x01
	destroying pool
#define	THR_POOL_WAKE_WORKER 0x02
	idle worker has been signaled
#define	THR_POOL_WORKER_WOKE 0x04
	ack from worker that woke
#define	THR_POOL_INITIALIZED (THR_POOL_LAST - 1)
	The "initialized" module state.
#define	THR_POOL_LOCK_ERROR (THR_POOL_LAST - 2)
	Internal error: a lock-related error.
#define	THR_POOL_LOCK_POOL_ERROR (THR_POOL_LAST - 3)
	Internal error: a lock-related error that affects the pool.
#define	THR_POOL_PTHREAD_ERROR (THR_POOL_LAST - 4)
	Internal error: a pthread-related error.
#define	THR_POOL_PTHREAD_POOL_ERROR (THR_POOL_LAST - 5)
	Internal error: a pthread-related error that affects the pool.
#define	THR_POOL_MEM_ERROR (THR_POOL_LAST - 6)
	Internal error: a memory-related error.
#define	THR_POOL_MEM_POOL_ERROR (THR_POOL_LAST - 7)
	Internal error: a memory-related error that affects the pool.
Typedefs
typedef struct job	job_t
	Simplifies defining linked lists.
typedef struct thr_pool	thr_pool_t
	Simplifies defining lists of pools.
typedef void(*	push_fn_t )(void *)
	Simplifies casting function pointers.
Functions
static int	thrint_create_worker (thr_pool_t *pool)
static void *	thrint_worker_function (void *arg)
static int	thrint_error_check (int error)
static int	thrint_pool_destroy (thr_pool_t *pool)
static void	thrint_job_free_handler (job_t *job)
static void	thrint_job_cleanup_handler (thr_pool_t *pool)
static void	thrint_worker_cleanup_handler (thr_pool_t *pool)
static void	thrint_lock_all (void)
static void	thrint_unlock_all (void)
static void	thrint_fork_child_handler (void)
int	thr_pool_create (const unsigned int pool_min, const unsigned int pool_max, const unsigned int timeout, const pthread_attr_t attr, thr_pool_handle_t pool_handle)
int	thr_pool_queue (const thr_pool_handle_t pool_handle, const int mode, const size_t len, void (func)(void ), void arg)
int	thr_pool_free (void)
int	thr_pool_destroy (const thr_pool_handle_t pool_handle)
int	thr_pool_init (void)
Variables
static int	thr_pools_state = THR_POOL_NOT_INITIALIZED
	Module state. One of: THR_POOL_INITIALIZED, THR_POOL_NOT_INITIALIZED, THR_POOL_UNRECOV_ERROR.
static int	thr_pools_atfork = 0
	Module state: remembers if the atfork handler was installed.
static thr_pool_t *	thr_pools = NULL
	List of pools.
static thr_pool_handle_t	next_pool_handle = -1
	Next valid handle.
static sigset_t	fillset
	A signal set filled with all signals.
static pthread_rwlock_t	thr_pools_lock = PTHREAD_RWLOCK_INITIALIZER
	Module lock. Protects: job::next pointers, thr_pools, thr_pools_state, next_pool_handle.

Detailed Description

The NPS Pthread Pool implementation.

Define Documentation

#define dbugdf	(	a,
		s,
		d
	)

Value:

do { \
    if (a) { \
        fprintf(stderr, "%5ld: ", pthread_self()); \
        fprintf(stderr, "%s:%d ", __FUNCTION__, __LINE__); \
        fprintf(stderr, "%s %d\n", s, d); \
        fflush(stderr); \
    } \
} while(0)

Prints to stderr "TID: file:line <string> <integer>\n".

#define dbugf	(	a,
		s
	)

Value:

do { \
    if (a) { \
        fprintf(stderr, "%5ld: ", pthread_self()); \
        fprintf(stderr, "%s:%d ", __FUNCTION__, __LINE__); \
        fprintf(stderr, "%s\n", s); \
        fflush(stderr); \
    } \
} while(0)

Prints to stderr "TID: file:line <string>\n".

#define dbugg	(	a,
		f,
		...
	)

Value:

do { \
    if (a) { \
        fprintf(stderr, "%5ld: ", pthread_self()); \
        fprintf(stderr, "%s:%d ", __FUNCTION__, __LINE__); \
        fprintf(stderr, f, __VA_ARGS__); \
        fprintf(stderr, "\n"); \
        fflush(stderr); \
    } \
} while(0)

Prints to stderr "TID: file:line <format string>\n".

#define DEBUG_THR_POOL 0

debug level

#define THR_POOL_COPY_MODE 0x01

flag: job input is copied

#define THR_POOL_DESTROY_REQUEST 0x01

destroying pool

#define THR_POOL_INITIALIZED (THR_POOL_LAST - 1)

The "initialized" module state.

#define THR_POOL_LOCK_ERROR (THR_POOL_LAST - 2)

Internal error: a lock-related error.

#define THR_POOL_LOCK_POOL_ERROR (THR_POOL_LAST - 3)

Internal error: a lock-related error that affects the pool.

#define THR_POOL_MEM_ERROR (THR_POOL_LAST - 6)

Internal error: a memory-related error.

#define THR_POOL_MEM_POOL_ERROR (THR_POOL_LAST - 7)

Internal error: a memory-related error that affects the pool.

#define THR_POOL_PTHREAD_ERROR (THR_POOL_LAST - 4)

Internal error: a pthread-related error.

#define THR_POOL_PTHREAD_POOL_ERROR (THR_POOL_LAST - 5)

Internal error: a pthread-related error that affects the pool.

#define THR_POOL_WAKE_WORKER 0x02

idle worker has been signaled

#define THR_POOL_WORKER_WOKE 0x04

ack from worker that woke

Typedef Documentation

typedef struct job job_t

Simplifies defining linked lists.

typedef void(* push_fn_t)(void *)

Simplifies casting function pointers.

typedef struct thr_pool thr_pool_t

Simplifies defining lists of pools.

Function Documentation

int thr_pool_create	(	const unsigned int	pool_min,
		const unsigned int	pool_max,
		const unsigned int	timeout,
		const pthread_attr_t *	attr,
		thr_pool_handle_t *	pool_handle
	)

Create and initialize the thread pool.

Parameters:

[in]	pool_min	The minimum number of threads in the pool. If no jobs are present for the pool, these threads are present, but idle.
[in]	pool_max	The maximum number of active threads allowed in the queue; it should be the case that pool_max should be non-zero, no less than pool_min, and no greater than THR_POOL_MAX_THREADS.
[in]	timeout	A value, interpreted as seconds, at most THR_POOL_MAX_TIMEOUT; if the number of active threads in the thread pool is in excess of pool_min, any thread that becomes idle will wait for timeout seconds. If no tasks are present in the queue or entered in the queue during this time, the thread will be removed from the pool and the system resources for the thread will be reclaimed;
[in]	attr	Pointer to the POSIX thread attribute used to specify the attributes of any thread created in the thread pool. If NULL, the default attributes of pthread_create() are used.
[out]	pool_handle	A handle for the thread pool.

Returns:: An indicator of whether or not the operation was successful. On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_BAD_INPUT, THR_POOL_RESOURCE_ERROR, THR_POOL_NOT_INITIALIZED, THR_POOL_ERROR, or THR_POOL_UNRECOV_ERROR is returned.

Here is the call graph for this function:

int thr_pool_destroy ( const thr_pool_handle_t pool_handle )

Cancels all queued jobs, kills all active threads, and frees all internal module resources related to the thread.

Parameters:

[in] pool_handle The handle for the thread pool.

Returns:: An indicator of whether or not the operation was successful On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_INVALID_HANDLE, THR_POOL_NOT_INITIALIZED, THR_POOL_ERROR, or THR_POOL_UNRECOV_ERROR is returned.

Here is the call graph for this function:

int thr_pool_free ( void )

Cancels all queued jobs, kills all active threads, and frees all internal module resources. All thread pools being managed are destroyed.

Returns:: An indicator of whether or not the operation was successful On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_NOT_INITIALIZED, or THR_POOL_UNRECOV_ERROR is returned.

Here is the call graph for this function:

int thr_pool_init ( void )

Initialize the thread management module data.

Returns:: An indicator of whether or not the operation was successful On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_RESOURCE_ERROR, THR_POOL_ERROR, or THR_POOL_UNRECOV_ERROR is returned.

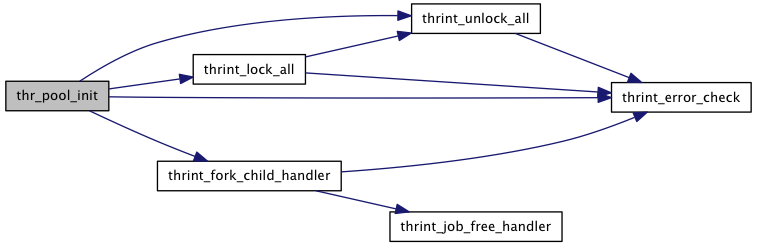

Here is the call graph for this function:

int thr_pool_queue	(	const thr_pool_handle_t	pool_handle,
		const int	mode,
		const size_t	len,
		void ()(void *)	func,
		void *	arg
	)

If there are idle threads in the pool, awaken one to perform the job. If there are no idle threads but the maximum number of threads in the pool has not been reached, create a new thread to perform the job. If no idle threads exist and the pool already has the maximum number of threads, then add the job to the queue and return success; some existing worker thread will perform the job when it becomes idle. If mode is 1, the len bytes at arg will be copied locally, and the job (when executed) will use the local copy of arg.

Parameters:

[in]	pool_handle	The handle for the thread pool.
[in]	mode	Can take any value. If 1, it indicates arg should be (shallow) copied. This is useful in many scenarios, e.g. when arg is a pointer to something on the caller's stack. If arguments are not copied, the caller must ensure arg persists until a thread is scheduled for the job, and throughout the duration of that job.
[in]	len	The length of arg.
[in]	func	A pointer to the job function.
[in,out]	arg	A pointer to the arguments for the job function. If argument is copied when enqueued, it cannot be used as an output argument.

Returns:: An indicator of whether or not the operation was successful On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_BAD_INPUT, THR_POOL_RESOURCE_ERROR, THR_POOL_INVALID_HANDLE, THR_POOL_NOT_INITIALIZED, THR_POOL_ERROR, or THR_POOL_UNRECOV_ERROR is returned.

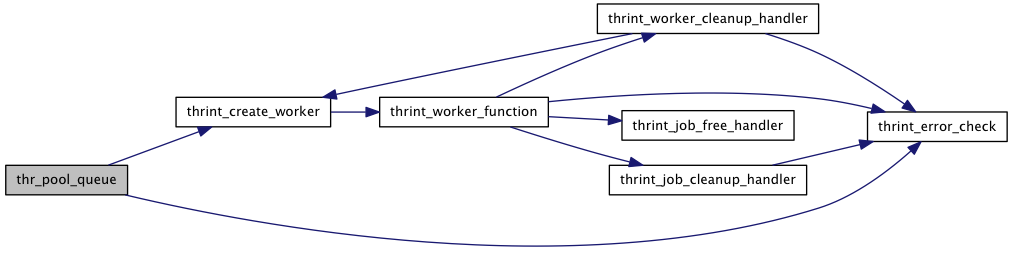

Here is the call graph for this function:

static int thrint_create_worker ( thr_pool_t * pool ) [static]

Creates a worker thread.

Precondition:: Caller must acquire lock to pool.

Parameters:

[in] pool A pointer to our pool

Returns:: An indicator of whether or not the operation was successful. On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_BAD_INPUT, or THR_POOL_PTHREAD_POOL_ERROR is returned.

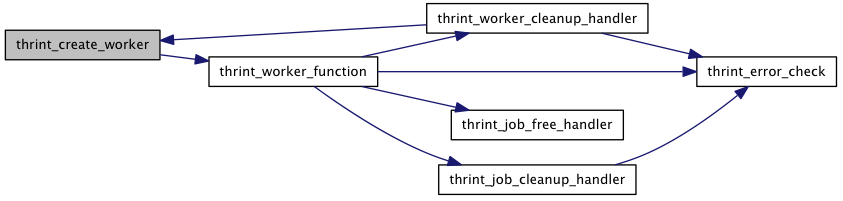

Here is the call graph for this function:

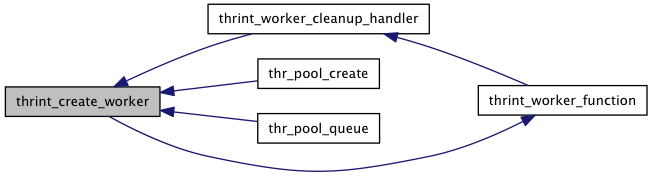

Here is the caller graph for this function:

static int thrint_error_check ( int error ) [static]

Some modue errors require actions to be taken on their behalf, such as changing the module state to the URECOVERABLE_ERROR_STATE. This function handles those conditions, and translates the internal errors into sensible, external errors that may be returned to the caller.

Precondition:: Unlike other internal functions, this function acquires the module lock; caller should not already hold a module lock.

Parameters:

[in] error An error code

Returns:: A constant that corresponds in meaning to error; if error is not a meaningful error, it is returned unchanged.

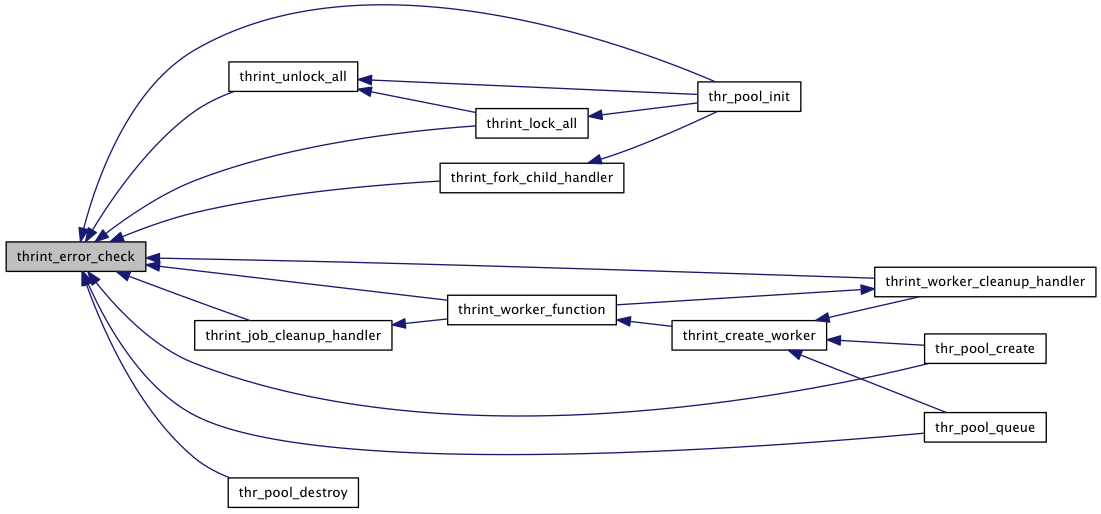

Here is the caller graph for this function:

static void thrint_fork_child_handler ( void ) [static]

A post-fork handler for the child. Puts the child's copy of the module into a sensible state.

Returns:: None.

Here is the call graph for this function:

Here is the caller graph for this function:

static void thrint_job_cleanup_handler ( thr_pool_t * pool ) [static]

A cleanup handler, executed by each worker thread upon completing a job. Takes the calling thread out of the list of active threads.

Postcondition:: Leaves pool->lock acquired.

Parameters:

[in] pool A pointer to our pool.

Returns:: None.

Here is the call graph for this function:

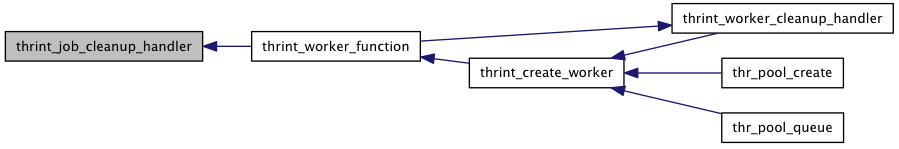

Here is the caller graph for this function:

static void thrint_job_free_handler ( job_t * job ) [static]

A cleanup handler, executed by each worker thread upon completing a job. Frees the resources associated with the job.

Parameters:

[in] job A pointer to our job.

Returns:: None

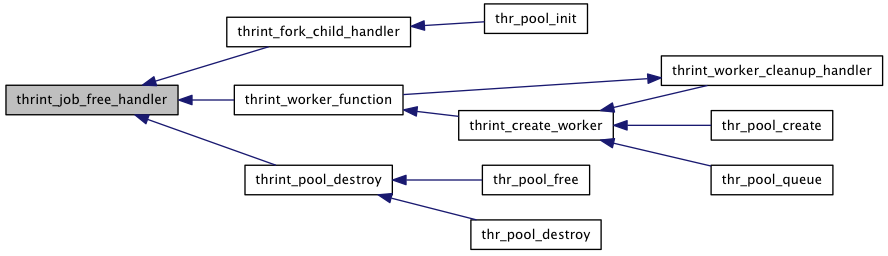

Here is the caller graph for this function:

static void thrint_lock_all ( void ) [static]

A pre-fork handler. Holds all locks, so they don't enter a bad state during a fork.

Returns:: None.

Here is the call graph for this function:

Here is the caller graph for this function:

static int thrint_pool_destroy ( thr_pool_t * pool ) [static]

Cancels all queued jobs, kills all active threads, and frees all internal module resources related to the thread.

Parameters:

[in] pool The handle for the thread pool.

Returns:: An indicator of whether or not the operation was successful On success: THR_POOL_SUCCESS is returned. On error: THR_POOL_LOCK_POOL_ERROR or THR_POOL_PTHREAD_POOL_ERROR is returned.

Here is the call graph for this function:

Here is the caller graph for this function:

static void thrint_unlock_all ( void ) [static]

A post-fork handler for the parent. Returns all locks.

Returns:: None

Here is the call graph for this function:

Here is the caller graph for this function:

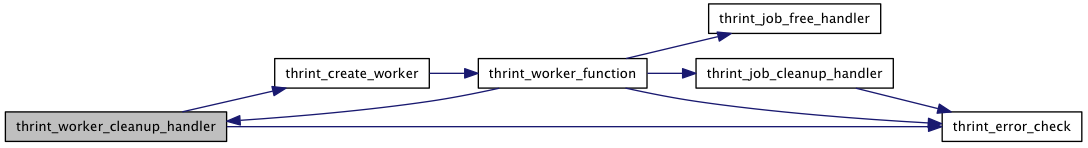

static void thrint_worker_cleanup_handler ( thr_pool_t * pool ) [static]

A cleanup handler, executed by each worker thread upon exiting. Takes the calling thread out of the thread pool. If the caller exited prematurely, it creates a new worker to replace it. If the caller exited as a response to the pool being destroyed, it signals anyone waiting (ie, anyone who called thr_pool_destroy()) in the case the pool is now empty.
